UV PROBE


FOR COD BOD TOC equivalent measurement

Tethys UV probe Provides a simple way to measure organic matter for surface water or industrial/municipal waste water. It must be calibrated for each application to gives a COD or BOD or TOC equivalent measurement depending on the sample composition. It is based on a new light source technology offering a compact and cost effective solution with a long lifetime.


SPECIFICATIONS

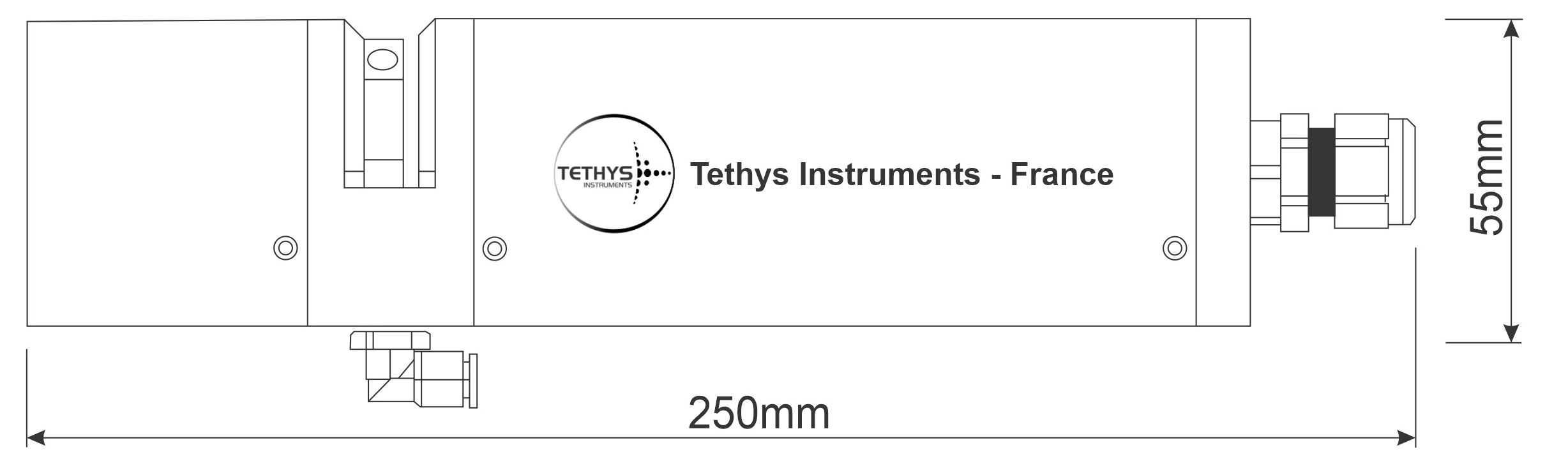

Dimension Drawing Measuring Range With 3 mm optical path: 0-600 Abs/m (equivalent to 0-5000 mg/l COD on rough municipal waste water)
With 10 mm path: 0-200 Abs/m (equivalent to 0-100 mg/l COD on surface water)
Optical path 3 mm or 10 mm
Measurement technique UV light absorbance
Accuracy +/- 2% on standard solution
Response time 10 sec
Turbidity compensation Integrated by dual-beam method
Light source life time > 5 years
Mounting Immersion
Probe cleaning system Air cleaning option available
Cable length 10 meters
Sensor protection IP68
Temperature range -20˚C to 70˚C
Body material Stainless Steel 316L
Wetted material PTFE, Quartz, FKM (Viton), PU, Brass Nickel Plated, Neoprene
Probe warranty 1 year

Reference Part


UV200-H UV probe with 3 mm optical path
Range: 0-600 Abs/m (0-5000 mg/l COD on rough municipal waste water)
10 meters cable
UV200-L UV probe with 10 mm optical path
Range: 0-200 Abs/m (0-100 mg/l COD on surface water)
10 meters cable

FOR COD BOD TOC equivalent measurement

Tethys UV probe Provides a simple way to measure organic matter for surface water or industrial/municipal waste water. It must be calibrated for each application to gives a COD or BOD or TOC equivalent measurement depending on the sample composition. It is based on a new light source technology offering a compact and cost effective solution with a long lifetime.


Download UV Probe


Description Type Language Size Download
UV Probe PDF English 305 KB
Brochure For All Probes PDF English 8837 KB
