PH SENSOR general purpose
Tethys General Purpose pH Sensor with ¾”NPT thread on both front & back is a heavy-duty pH probe with Ryton body suitable for many industrial water application. Mounting thread on both front and back allow for in-pipe (continuous measurement) or submersible installations of pH Sensor. This pH sensor offers excellent chemical and impact resistance.
Application
- Industrial waste water treatment plant
- Drinking water treatment plant
- Other process water application
- Municipal waste water treatment plant
- Surface water application
SPECIFICATIONS

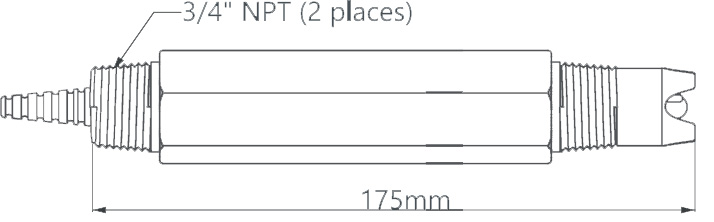

| Dimension Drawing | pH Range | 0-14 pH |
|
Response Time | 5 seconds to 95% of full response |
| pH Sensor Type | Convertible style combination pH sensor | |
| Body Material | Ryton | |
| Reference | Double Junction with porous Teflon | |
| Mounting | Immersion or In-Line | |
| Temperature Range | 0-80 °C | |
| Maximum Operating Pressure | 100 psi | |
| Temperature Element | Pt-100 Ohm RTD | |
| Temperature Compensation | Automatic | |
| Integral Sensor Cable Length | 6 meter | |
| Mounting Thread on Sensor Body | ¾” NPT threads, front & back |
Reference Part
| ELPH | pH online electrode, general purpose Range: 0-14 6 meters of cable length Built-in ATC RTD 100 ohm |
Tethys General Purpose pH Sensor with ¾”NPT thread on both front & back is a heavy-duty pH probe with Ryton body suitable for many industrial water application. Mounting thread on both front and back allow for in-pipe (continuous measurement) or submersible installations of pH Sensor. This pH sensor offers excellent chemical and impact resistance.
Application
- Industrial waste water treatment plant
- Drinking water treatment plant
- Other process water application
- Municipal waste water treatment plant
- Surface water application
