TOTAL SUSPENDED SOLIDS PROBE
Tethys Total Suspended Solid (TSS) Probe operate on the principle of single gap light absorption as a means of detecting the presence of suspended solids. The sensors incorporate self-cleaning optics via air or water jet. The application involves measurement of total suspended solids concentration from Mixed Liquor Suspended Solid (MLSS), Return Activated Sludge (RAS), Waste Activated Sludge (WAS), clarifier effluent and plant effluent.
Application
- Industrial waste water treatment plant
- Other process water application
- Municipal waste water treatment plant
- Surface water application
SPECIFICATIONS

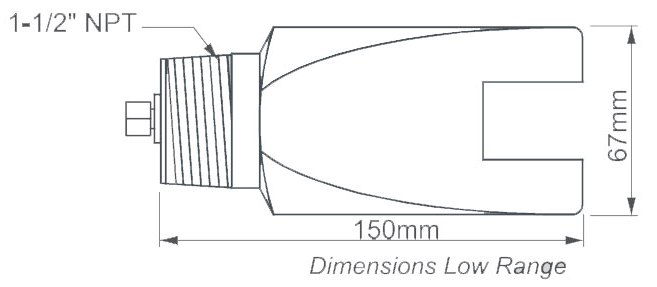

| Dimension Drawing | Measurement Low Range | 0-1500 mg/L |
|
Measurement High Range | 250 – 30,000 mg/L |
| Accuracy Low Range Sensor | 5% of reading or 5 mg/l whichever is higher | |
| Accuracy High Range Sensor | 5% of reading or 50 mg/l whichever is higher | |
| Stability | 2% of reading | |
| Repeatability | 2% of reading | |
| Working Temperature Range | 0 to 60 °C | |
| Measurement Technique | IR light absorption | |
| Response Time | 60 second to 90% (T-90) | |
| Wetted Material | Epoxy, polyurethane and PVC | |
| Sensor Drift | Less than 1% per year | |
| Integral Sensor Cable Length | 10 meter | |
| Sensor Cleaning System | air or water wash option available | |
| Maximum Pressure | 100 psi | |
| Mounting | Submersible | |
| Mounting Thread on Sensor Body | 1-1/2” NPT | |
| Probe Warrantee | 1 Year |
Reference Part
| EXT-TURB-H | Total suspended solid (TSS) probes high range High range: 0 – 30,000 mg/l TSS 10 meters cable |
| EXT-TURB-L | Total suspended solid (TSS) probes low range Low range: 0 – 1500 mg/l TSS 10 meters cable |
Tethys Total Suspended Solid (TSS) Probe operate on the principle of single gap light absorption as a means of detecting the presence of suspended solids. The sensors incorporate self-cleaning optics via air or water jet. The application involves measurement of total suspended solids concentration from Mixed Liquor Suspended Solid (MLSS), Return Activated Sludge (RAS), Waste Activated Sludge (WAS), clarifier effluent and plant effluent.
Application
- Industrial waste water treatment plant
- Other process water application
- Municipal waste water treatment plant
- Surface water application
Download Total Suspended Solid Probe
| Description | Type | Language | Size | Download |
|---|---|---|---|---|
| Total Suspended Solid Probe | English | 283 KB |
|
|
| Brochure For All Probes | English | 8837 KB |
|
